Electrical Test

Contact Resistance, Insulation Resistance, Electrical Strength, Temperature Rise, Breaking Capacity, Over Load Test. Inalways standard inspection is in accordance of IEC-60320, EN 60320, UL 498, CSA C22 & GB 17465

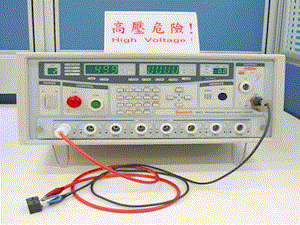

Hipot Tester

Hipot Tester can inspect insulation resistance to resist moisture between housing & terminal. In addition,it can test electrical strength between all terminals to meet safety.

FUNCTION : Insulation Resistance Electrical Strength
OUTPUT : AC/0~5KV
INSULATION RESISTANCE : 1MΩ~5GΩ

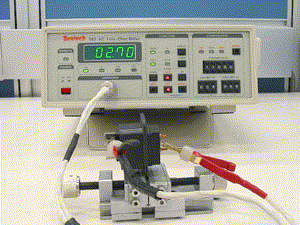

Resistance Meter

To ensure contact conduction between terminals,Resistance Meter can test contact resistance between input and output of sockets.

FUNCTION : Contact resistance
RANGE : 0.01mΩ~199.99KΩ
ACCURACY : ±0.1%

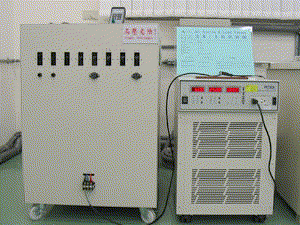

AC Source & Load Equipment

AC Source & Load Equipment can inspect mechanic ,electric,and thermal stress from sockets in normal usage condition. In addition, it can test breaking capacity of sockets by rising electrical pressure to simulate withdraw force.

FUNCTION : Temperature Rise Breaking Capacity
RANGE : 300V/20A(AC)

Hipot Tester

Resistance Meter

Load Equipment
