Mechanical Test

Withdrawal Force, Pull Force of Terminal, Retention of Plug Test, Normal Operation. Inalways standard inspection is in accordance of IEC-60320, EN 60320, UL 498, CSA C22 & GB 17465

Tensile Strength Test Equipment

Tensile Strength Test Equipment can test withdraw force to ensure easy to plug-in & out without deformation in normal condition. In addition,this equipment can inspect Pull force between housing & terminal to avoid short-circuit cause from loose terminal.

FUNCTION： Insertion/Withdrawal Forces Pull Force of Terminal
RANGE : 0~200kgf
SPEED : 0.01~600mm/min

Endurance Test Equipment

Endurance Test Equipment can inspect mechanic, electric & thermal stress from sockets under simulation of long term usage without developing any damage.

FUNCTION : Normal Operation
SPEED : 6~10times/min

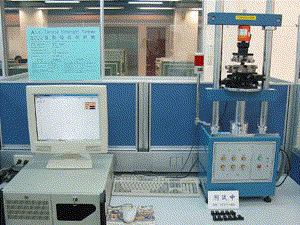

Tensile Strength

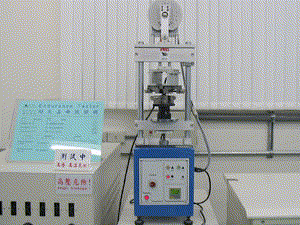

Endurance Test
